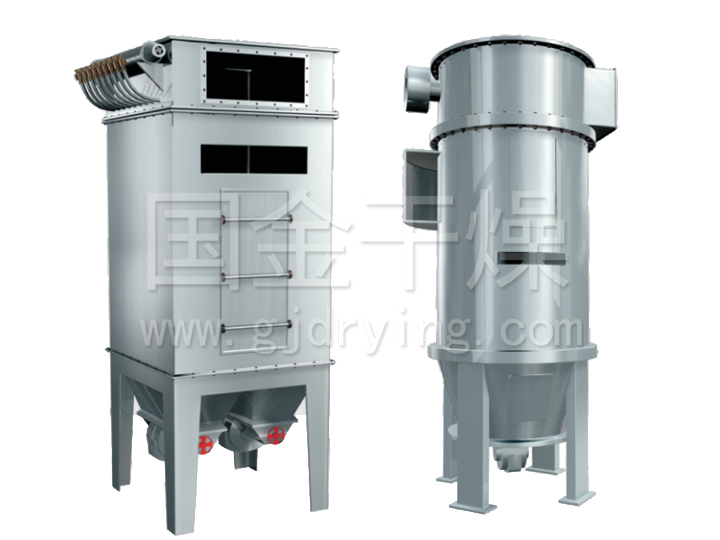

PJBF Series Pulse Jet Bag Filter

Introduction: Principle of workThe air stream containing dust passes through low box from air inlet.Parts of it deposit When light particle dust is floated.It is retarded in the bag.The purified air penetrates the filtrating bag and passes into the up box through v…

Hotline: 0086-15380092122
Inquiry

Principle of work

The air stream containing dust passes through low box from air inlet.Parts of it deposit When light particle dust is floated.It is retarded in the bag.The purified air penetrates the filtrating bag and passes into the up box through venture and exhausts from outlet.The accumulated powder dust on the outer wall of filtering bag.


Applications

The equipment is widely used for ventilation and degusting and recovering powder dust of metallurgy industry.casting industry,mine, chemical industry,and pharmaceutical industry,construction material industry,fed industry and grain processing industry and so on.

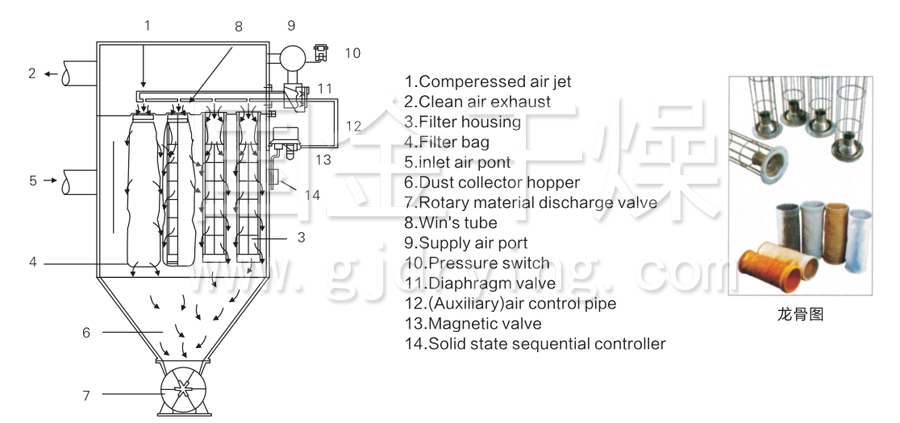

Sketch of structure

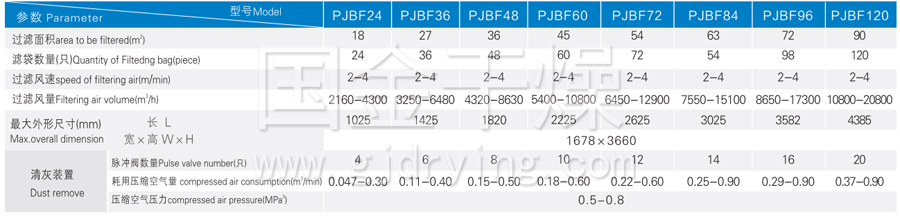

Technical Parameter
