HLD Series Hopper Mixer

Introduction: DescriptionsIts widely used as the mixing machine for solid medicine powder in pharmaceutical industry worldwide.The mixing uniformity is high,the mixing hopper is movable,it is very convenient for material loading.mixing,discharging and cleaning.Its …

Hotline: 0086-15380092122
Inquiry

Descriptions

It's widely used as the mixing machine for solid medicine powder in pharmaceutical industry worldwide.The mixing uniformity is high,the mixing hopper is movable,it is very convenient for material loading.mixing,discharging and cleaning.It's easy to integrate with the upstream and downstream process,the problem of cross pollution and fly-dust caused by multi-material-transferring can be solved.Different material hoppers can be equipped with this machine,so to meet the mixing requirement of large batch capacity,and multi-varities.This machine is the ideal equipment for mixing and batch mixing,and has wide application in chemical industry,food industry,light industry and other industries.


Principle of work

◆Through years of studying,comparing and absorbing both domestic and foreign machines,we develop our own design of HLD series hopper mixer.

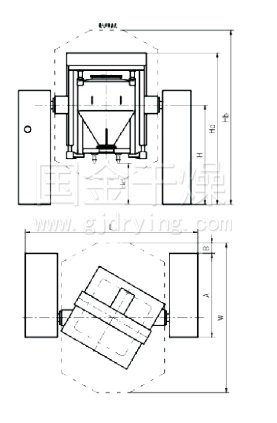

◆The main structure feature of the mixer is:The mixing body(material hopper)and the rotating axis form a angle of3°.When the material isrotating,the material also makes tangent move ment along the wall of
the vessel.The function of two movements makes all points of material moves in complicated ways,changes their positions all the time,so to have very high mixing efficiency.


Features

◆The structure is reasonable,adopt double hoisting devices,motor rotation,flexible coupler.The performance is stable,the upkeep and maintenance are simpler,and there's no problem of leakage.
◆It Adopts programmed control system,technical parameters setting system,machine stops system for safety,automatic accurate positioning system,operation and automatic record printing system.Fully automatic production is realized,and the operation is very simple.
◆To ensure the quality of the machine,we adopt high quality outer purchased parts for this machine.
◆Equipped with fine manufactured hopper that fully meets GMP the requirements,no residues of discharging,easy for cleaning and washing.
◆We supply series of material conveying product.It forms advanced process together with the hopper mixer. Remarks:If customer has any special requirements,we can customize for you.

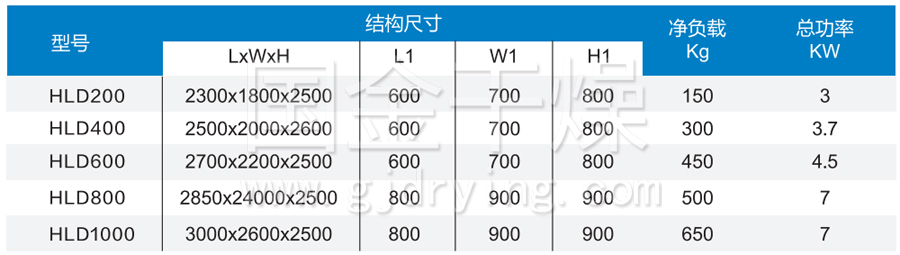

Technical Parameter
