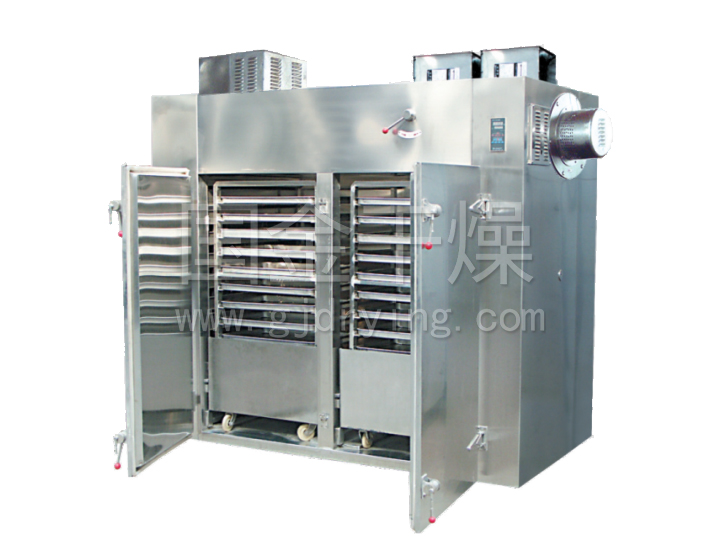

CT、CT-C Series Hot Air Circulating Drying Oven

Descriptions

CT-C series hot air circulation drying oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system.The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45%of the present one.The highest heat efficiency can reach 50%.The successful design of CT-Chot air circulation drying oven makes that the hot air circulation drying oven in our country catch the advanced level both at home and abroad.In order to save a large quantity of the energy in out country,in order to enhance the economic results of the enterprises,in 1990,the medicine management bureau of the State issued the industry standard and the uniform type is RXH.

Applications

It is suitable for heating and solidification,drying and dehydration of raw materials in pharmaceutical industry,chemical industry,foodstuff industry,agricultural and sideline products,aquatic products,light industry,heavy industry and so on.The raw materials can be medicine raw materials,Chinese traditional medicine,tablet of drink,immersed electuary,powder,granule,packing bottle,pigment,dyestuff,dehydration vegetable,dried fruit and melons,banger,plastic resin,electric elements,drying varnish and so on.

Main technical parameters and relevant explanation

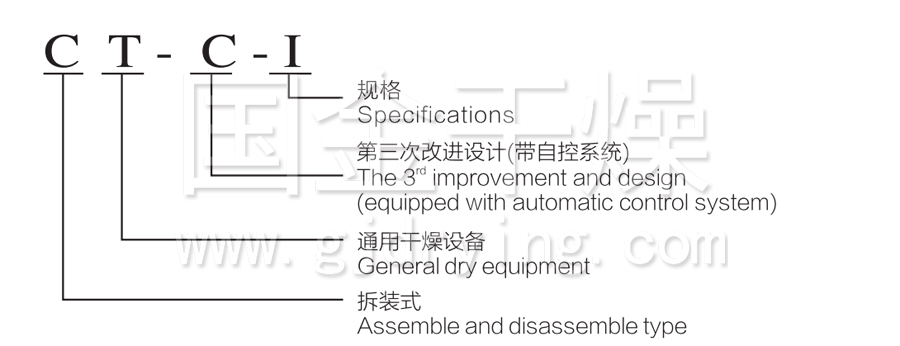

Origina Model

1.The heat source can be steam,electricity,far infrared,or steam+electricity.Customer can select one of the heating ways in accordance with practical conditions.
2.Temperature of operation:50-140℃for steam,Maximum temperature will be150℃.
3.50-500℃for electricity or far infrared.
4.There are automatic and computer control systems for customer selection.
5.The normal pressure of steam will be 0.02-0.8Mpa(0.2-8kg/cm)
6.The equipped power of electric heater will be 15kw Calculated with Model I and the opera-tional power to be used will be 5-
8kw/hr.
7.For special requirement,please indicate it in order.
8.The price of non-standard oven shall be discussed additionally.
9.If the operation temperature is more than140℃or less than60℃，please indicate it in order.
10.The size of drying trolly and tray is standardized.They can be exchanged each other.
11.The size of drying tray:460×640x45(mm)

Features

◇Wide application and can be suitable for a variety of materials,is a versatile drying equipment.
◇Most of hot air is circled inside the oven.The hot efficiency is high The energy source can be saved.
◇It uses enhanced ventilation and equips with adjustable air distributing plate inside the oven Raw material can be dried evenly,The heat source can be steam hot water,electricity of far infrared.
◇The applied fields are wide and can be suitable for all kinds of raw materials.It is a comprehensive drier.
◇Temperature application range,according to user requirements,up to room temperature to350℃
◇The machine has low noise and stable operation.The temperature can be controlled automatically.The installation and maintenance are very convenient.

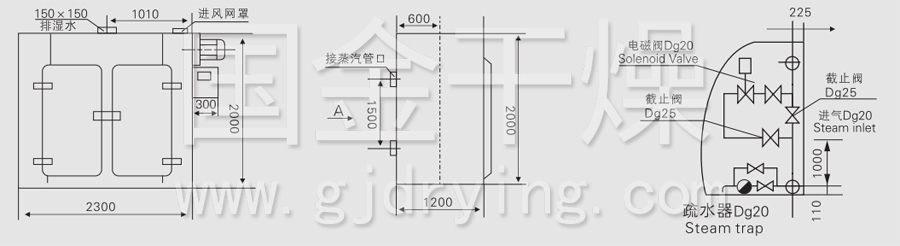

Sketch Of Model CT Oven

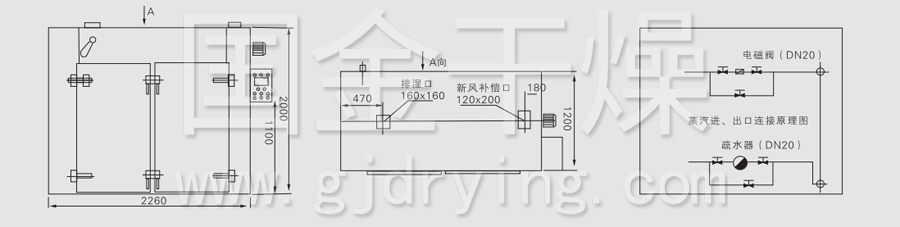

Sketch of Model CT-C Oven

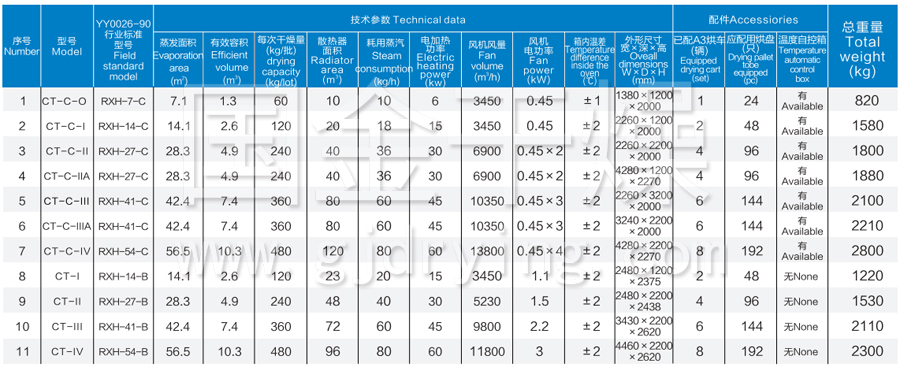

Technical Parameter
