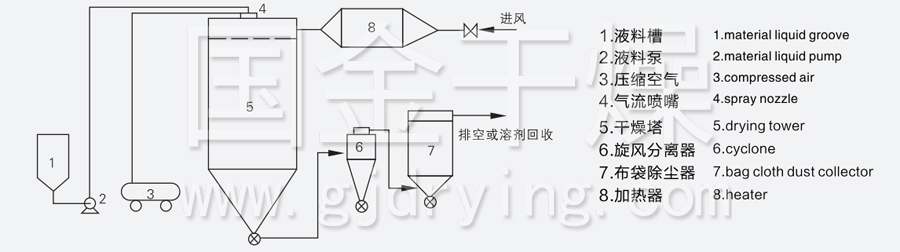

Introduction: Principle of workThe clean air is heated and entered into the drying tower,the raw material inside the tower is atomization and becomes mini liquid drops through nozzles of two or three liquids.The raw materials carry out heat exchange with the hot ai…
The clean air is heated and entered into the drying tower,the raw material inside the tower is atomization and becomes mini liquid drops through nozzles of two or three liquids.The raw materials carry out heat exchange with the hot air rapidly to evaporate the moisture solvent in the raw materials.The moisture or solvent is discharged accompany with hot air,then got the powder product is.
◆It is better for raw materials that arelarge inviscosity and grease and paste.The other equipment can not replace it.
◆More varieties and wipe application in drying with lower temperature.
◆The nozzle is simple in structure,convenient in maintenance and lower cost in operation.
Notes:

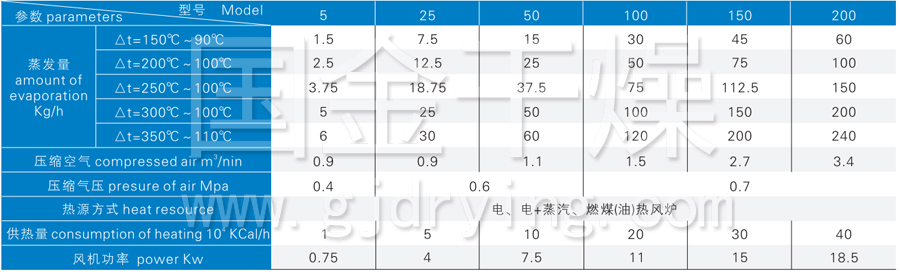

1.If the power of equipment should be more than 200 type,it can be designed and manu factured in accordance with the requirements ofcustomers.
2.The power of fan is suitable for standard flow chart.If add the cloth to remove dust or recover solvent,it should be increased.
